Magnetic Wireless Car Charger S1C0

Download instructions in PDF

The Cubenest S1C0 magnetic wireless car charger combines the function of a holder and Qi wireless charging with MagSafe technology. The strong magnet ensures a secure hold on your iPhone while driving, allows easy one-handed handling and supports fast charging with up to 15W of power and is compatible with iPhones from Series 12 onwards with MagSafe.

The package includes

• 1× Magnetic Wireless Charger
• 1× Holder with clip for ventilation grille
• 1× USB-C to USB-C cable (1 m length)
• 1x User manual

Product Specifications

• Model: S1C0
• Safety protection: over-voltage and over-temperature protection, short-circuit protection
• Input current/voltage: 5V/2A, 9V/2A
• Output power: 5W/7.5W/15W max.
• Compatible with MagSafe technology
• Mounting: clip holder
• Material: zinc alloy
• Input: USB-C
• Safety protection: over-voltage and over-temperature protection, short-circuit protection
• Can be used to charge: iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 12 mini, iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15 Plus, iPhone 15, iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16 Plus, iPhone 16 (if you own an older model, a MagSafe-enabled accessory is required)

Note: The charger requires a minimum 15W charging adapter (not included). (We recommend a 45W car charger). Using a weaker adapter will reduce wireless charging performance.

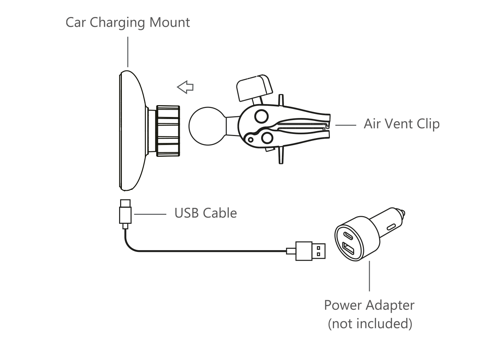

Instructions for use

Step 1: Install the holder into the ventilation grille

1. Open the clip by turning the thread counterclockwise.
2. Select a suitable location on the car's ventilation grille and attach the clip by turning the thread clockwise against the slat.
3. Install the plastic nut on the front of the bracket.
4. Slide the rear of the bracket with the magnetic surface into the plastic nut, then screw the nut in until the connection is tight.

Step 2: Connect the charger to the power supply

1. Plug the USB-C cable into a power adapter designed for the car's power plug (min. 15W, not included).
2. Connect the USB-C end of the cable to the charger.
3. Once connected, the LED indicator lights up to indicate that it is ready to charge.

Step 3: Charging the device

1. Place your MagSafe-enabled device on the mount.
2. Charging will start automatically and the LED light on the charger will go into "breathing" mode (gradual pulsing of the light).
3. To remove the phone, simply pull it away from the magnetic surface.
4. Once fully charged, disconnect the charger from the charging adapter and the LED light will turn off.

Suitable for most ventilation grilles

Safety instructions

⚠️ The holder may not function properly if the iPhone is in an unsuitable or thick case.
⚠️ ENSURE a firm fit in the vent.Before driving, check that the holder is properly secured in the ventilation grille and does not slip. An improperly attached bracket can fall off while driving and cause driver distraction.
⚠️ DO NOT expose to high temperatures.DO NOT expose the bracket to direct sunlight for extended periods of time (e.g. behind a windshield) - extreme temperatures can affect the functionality of the magnet and material.
⚠️ DO NOT use an uncertified power adapter or an unoriginal or damaged USB cable.
⚠️ PROTECT from water and other liquids.
⚠️ DO NOT attach metal tags or other metal objects to the car mount - this may affect charging or cause overheating.
