Cubenest PowerCube Extended USB C+C 35W

Download instructions in PDF

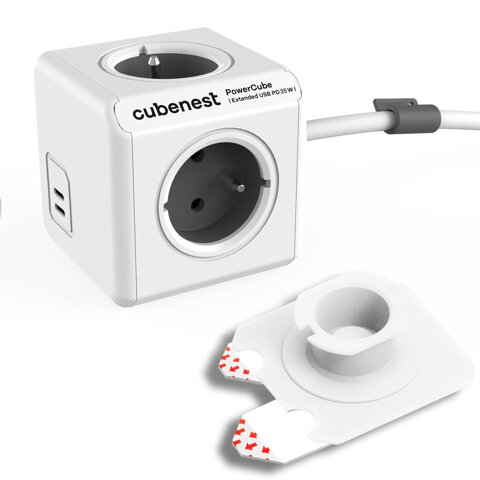

The Cubenest PowerCube Extended USB C+C 35W is a stylish cube-shaped multi-socket with four outlets - ideal for connecting up to four standard sockets without blocking each other and a 1.5m long cable. The sleek Red Dot Design Award-winning design and modern ABS construction with child safety lock ensure safe and durable use in the office, on the go and at home. The PowerCube allows easy and clear charging of multiple devices in one compact body. With the mounting dock, you can fix the PowerCube on/under your desk according to your needs. PowerCube has 2x USB-C inputs.

Package contents

• 1× Cubenest PowerCube Extended USB C+C 35 W 1.5 m
• 1x Mounting dock
• User manual

Product Specifications

• Protection: overvoltage, short circuit, current, thermal
• Model: Extended USB C+C 35W
• Variants: grey
• Output power of sockets: max 16A/250V~2500W/50-60Hz
• USB-C1/USB-C2 output power: 35W MAX, 5V/3A, 9V/3A, 12V/2.91A, 15V/2.33A, 20V/1.75A, 3~11V/3A
• Output power USB-C1+USB-C2: 24W MAX, 12W (5V/2.4A) + 12W (5V/2.4A)
• Material: ABS
• Childproof fuse
• Socket type: E
• Cable length: 1.5 m
• Number of sockets: 4
• USB Ports: 2x USB-C
• Supports fast charging technology
• PD 3.0, PD2.0, PPS
• QC4.0+, QC3.0, QC2.0
• DCP, FCP, SCP, AFC
• Apple 2.4, Samsung 2.0
• BC1.2, PE2.0, PE1.1

Instructions for use

1. Plug the PowerCube into a power outlet and connect the device
2. connect the device to the Powercube socket.

• Thanks to the clever design, you can combine sockets and USB-C ports as you need them.

Plugging in the mounting dock

1. Remove the protective film from the adhesive strips and stick them to the mounting dock.
2. Glue the mounting dock to a flat surface.
3. Insert the mounting dock into the PowerCube socket with the special plugs and secure by turning.

Safety instructions

⚠️ DO NOT cover the device and protect it from contact with water.
⚠️ The device is NOT intended for use in wet environments and/or outdoors.
⚠️ DO NOT exceed the maximum allowable power.
⚠️ The recommended operating temperature is up to 25 °C, short-term use may be up to 35 °C.
⚠️ Interconnecting multiple PowerCube units is not recommended. Although it is technically possible to connect PowerCube Original and PowerCube Extended models, for safety reasons it is always advisable to use only one unit separately. Connecting multiple outlets can overload the mains and exceed the maximum power input of 2500 W, which can lead to overheating or damage to the equipment. Always use the PowerCube separately for safe operation.
