Qi2 Magnetická bezdrátová nabíječka do auta SQ1C0

Download instructions in PDF

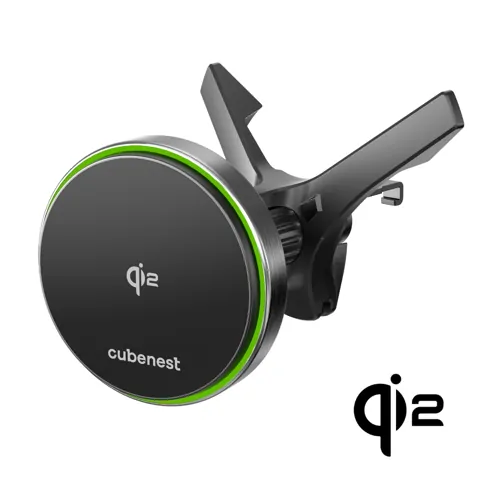

Cubenest SQ1C0 is a magnetic car mount with wireless charging that supports Qi2 standard and MagSafe technology. It allows you to quickly and safely charge your device with up to 15 W of power. With a strong magnet and four-point attachment system, it is compatible with most ventilation grilles and secures and is compatible with iPhones with MagSafe from Series 12 onwards. Holds your phone securely even while driving.

Package contents

• 1× Qi2 magnetic wireless charger
• 1× Holder for attaching to the ventilation grille
• 1× USB-C to USB-C cable (1 m length)
• User manual

Product Specifications

• Model: SQ1C0
• Safety protection: over-voltage and over-temperature protection, short-circuit protection
• Input current/voltage: 5V/2A, 9V/A, 12V/2.5A
• Output Power: 5W/7.5W/15W
• Compatible with MagSafe technology
• Mounting: 4-point system in ventilation grille
• Material: aluminum, tempered glass and polycarbonate
• Input: USB-C
• Wireless charging protocol: Qi2
• Can be used to charge: iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 12 mini, iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15 Plus, iPhone 15, iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16 Plus, iPhone 16 (if you own an older model, a MagSafe-enabled accessory is required)

Note: The charger requires a minimum 20W car charger (45W car charger is recommended). Using a weaker adapter will reduce wireless charging performance.

Instructions for use

Step 1: Install the bracket into the ventilation grille

1. Select a suitable location on the ventilation grille in your car.
2. Turn the thread counterclockwise to extend the hook on the back of the bracket to the desired length.
3. Insert the bracket into the ventilation grille so that the hook catches on the slat.
4. Tighten the thread clockwise to secure the bracket firmly to the grille.
5. Place the plastic nut on the front of the bracket.
6. Slide the back of the charger into the plastic nut, then screw the nut in until the connection is tight.

Step 2: Connect the charger to the power supply

1. Plug one end of the USB-C cable into the car charger (min. 15W, not included).
2. Connect the other end of the USB-C cable to the charger.
3. Once connected, the LED indicator will light up to indicate that it is ready to charge.

Step 3: Charging the device

1. Place your MagSafe device on the mount.
2. Charging will start automatically.
3. To remove your phone, simply pull it away from the magnetic surface.
4. Once fully charged, disconnect the holder from the charging adapter, the LED light will turn off.

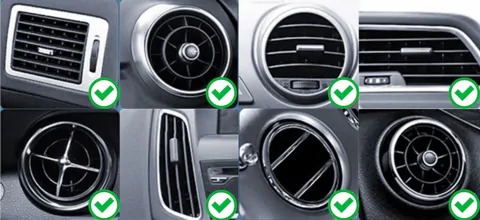

5. Suitable for most ventilation grilles

Suitable for most ventilation grilles

Safety warning

⚠️ Wireless charging may not work properly if the iPhone is in an unsuitable or thick case.
⚠️ DO NOT use an uncertified power adapter or an unoriginal or damaged USB cable.
⚠️ PROTECT from water and other liquids.
⚠️ DO NOT attach metal tags or other metal objects to the car mount - this may affect charging or cause overheating.
⚠️ ENSURE a firm fit in the vent.Before driving, check that the bracket is properly secured in the ventilation grille and does not slip. An improperly attached bracket can fall off while driving and cause driver distraction.
⚠️ DO NOT expose to high temperatures.DO NOT expose the bracket to direct sunlight for extended periods of time (e.g. behind a windshield) - extreme temperatures can affect the functionality of the magnet and material.
