PD GaN Adapter 140W S5D0

Download instructions in PDF
s5d0

The Cubenest S5D0 is a universal GaN charger with a total power of up to 140 W, equipped with 3x USB-C and 2x USB-A ports. With support for PD 3.1 protocol, it enables charging up to 140 W via a single USB-C port, meaning that, for example, a MacBook Pro (2021 and newer) can be charged to 50% capacity in just 30 minutes. The LCD display shows the current charging performance.

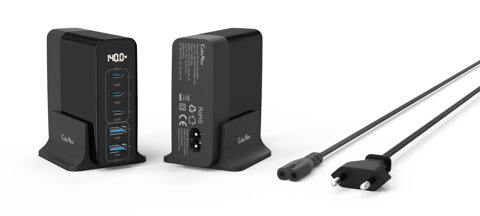

The package includes

  • 1x PD GaN Adapter 140W S5D0
  • 1x Power cable (1.5 m)
  • 1x Stand for placing the adapter
  • 1x USB-C to USB-C cable (1 m, 240 W)
  • User manual

Product Specifications

  • Model: S5D0
  • Safety protection: over-voltage and over-temperature protection, short-circuit protection
  • Total power: up to 140W
  • Input voltage: 100-240 V AC
  • Ports: 3× USB-C, 2× USB-A
  • Output power:
  • USB-C 1 / USB-C 2: up to 140 W (PD 3.1)
  • USB-C 3 / USB-C 4: up to 100 W
  • USB-A 1 / USB-A 2: up to 60 W
  • Supports technologies:
  • PD3.1, PD3.0, PD2.0, PPS
  • QC4.0+, QC3.0, QC2.0
  • DCP, FCP, SCP, AFC
  • Apple 2.4, Samsung 2.0
  • BC1.2, PE2.0, PE1.1
  • Charging multiple devices simultaneously: The adapter allows you to charge up to five devices simultaneously. When multiple devices are connected, the power is divided between the ports. To achieve maximum performance on a particular port, we recommend connecting fewer devices

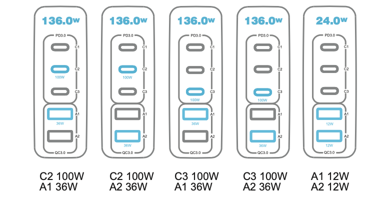

Product parameters:

One port in use

 .

Two ports in use

..

Three ports in use

 ..

Four ports in use

.

Five ports in use

.

Safety instructions

⚠️ DO NOT use an uncertified or damaged USB cable for charging.
⚠️ Ensure adequate ventilation of the adapter during operation.
⚠️ Do not expose the adapter to extreme temperatures, humidity or direct sunlight.
⚠️ AVOID contact with water.
⚠️ Do not use the adapter if it is damaged or shows signs of malfunction.
