PD Adaptér 35W S2D1

Download instructions in PDF

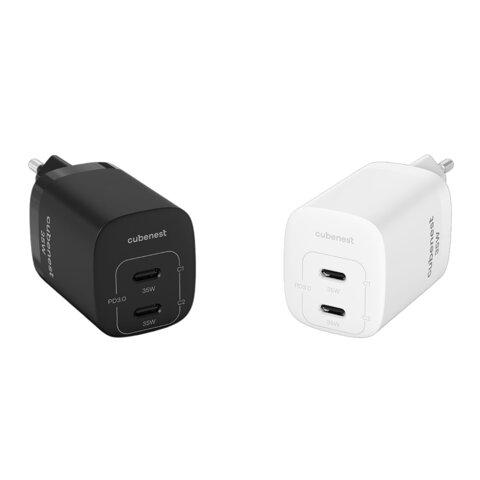

A compact GaN network charger with two USB-C ports that offers a maximum power output of up to 35W. It supports Power Delivery 3.0 (35 W in one port, 17.5 W divided over two ports) and a wide range of fast charging protocols (PD2.0/PPS, QC4+/3.0, DCP, etc.). Ideal for phones, tablets and laptops.

Package includes

• 1x PD adapter 35W
• User manual

Product Specifications

• Model: S2D1
• Total power: 35 W
• Safety protection: over-voltage and over-temperature protection, short-circuit protection
• Supports technologies: PD 3.0, PD2.0, PPS, QC4.0+, QC 3.0, QC2.0, DCP, FCP, SCP, AFC, Apple 2.4, Samsung 2.0, BC1.2, PE2.0, PE1.1
• Ports: 2× USB-C
• Fast Charging Parameters:
• Input: AC 100-240V~50/60Hz 1A
• USB-C1 output power: 5V/3A, 9V/3A, 12V/2.91A, 15V/2.33A, 20V/1.75A
• USB-C2 Output Power: 5V/3A, 9V/3A, 12V/2.91A, 15V/2.33A, 20V/1.75A
• Charging multiple devices simultaneously: The adapter allows you to charge two devices simultaneously. When both devices are connected, the power is split between the ports. To achieve maximum power on a particular port, we recommend connecting fewer devices.

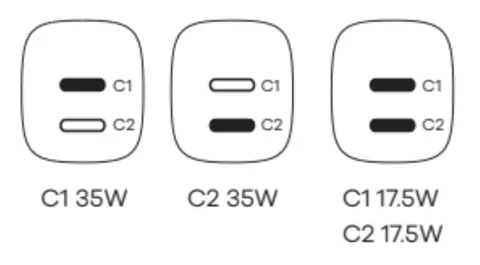

A diagram of the connection to the ports

.

Instructions for use

Step 1: Connect the adapter to the power supply

1. Connect the power cord to the adapter.
2. Plug the adapter into an electrical outlet (100-240 VAC).

Step 2: Connect the device to the adapter

1. Select the desired port.
2. Connect the device using a compatible cable.
3. The adapter will automatically detect the connected device and adjust the output power.

Safety instructions

⚠️ USE only high-quality, certified and undamaged cables.
⚠️ ENSURE adequate ventilation of the adapter during operation.
⚠️ DO NOT expose the adapter to extreme temperatures, humidity, or direct sunlight.
⚠️ PROTECT the adapter from water and other liquids.
