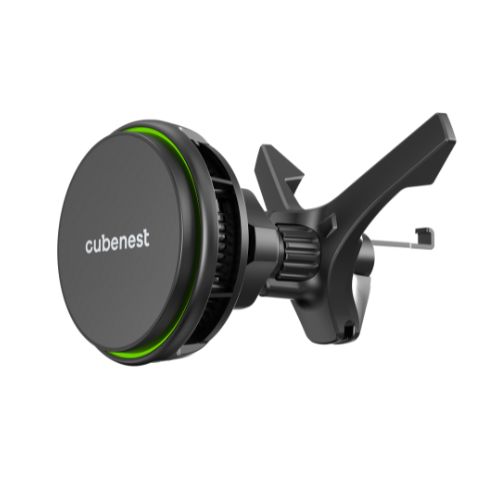

Cooling Magnetic Wireless Car Charger S1C2

Download instructions in PDF

Cubenest S1C2 is an innovative magnetic car mount with MagSafe technology and active cooling. Thanks to the semiconductor cooling chip and integrated fan, it maintains the optimal temperature of the phone during charging, preventing overheating and ensuring stable performance. A strong magnet (1.4 kgf) holds the device firmly in place, while the 4-point mounting system allows for easy installation on most ventilation grilles. The mount supports wireless charging with up to 15W of power and is compatible with iPhones from Series 12 and up with MagSafe.

Package includes

• 1× Magnetic Wireless Charger
• 1× Vent Grille Holder
• 1x Suction cup holder for glass or dashboard
• 1× USB-C to USB-C cable (1 m length)
• User manual

Product Specifications

• Model: S1C2
• Safety protection: over-voltage and over-temperature protection, short-circuit protection
• Input current/voltage: 5V/2A, 9V/2A, 12V/2A
• Output power: 5W/7.5W/15W max.
• Compatible with MagSafe technology
• Mounting: 4-point system in ventilation grille
• Material: polycarbonate
• Input: USB-C
• Can be used for charging: iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 12 mini, iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15 Plus, iPhone 15, iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16 Plus, iPhone 16 (if you own an older model, a MagSafe-enabled accessory is required)

Note: The holder requires a minimum 15W charging adapter (not included). We recommend a 45W car charger. Using a weaker adapter will reduce wireless charging performance and the effect of the cooling system.

Instructions for use

Step 1: Install the bracket into the ventilation grille

1. Select a suitable location on the ventilation grille in your car.
2. Turn the thread counterclockwise to extend the hook on the back of the bracket to the desired length.
3. Insert the bracket into the ventilation grille so that the hook catches on the slat.
4. Tighten the thread clockwise to secure the bracket firmly to the grille.
5. Place the plastic nut on the front of the bracket.
6. Slide the back of the charger into the plastic nut, then screw the nut in until the connection is tight.

Step 2: Connect the charger to the power supply

1. Plug one end of the USB-C cable into the car charger (min. 15W, not included).
2. Connect the other end of the USB-C cable to the charger.
3. Once connected, the LED indicator will light up to indicate that it is ready to charge.

Step 3: Charging the device

1. Place your MagSafe device on the mount.
2. Charging will start automatically.
3. To remove your phone, simply pull it away from the magnetic surface.
4. Once fully charged, disconnect the holder from the charging adapter, the LED light will turn off
5. Suitable for most ventilation grilles

Suitable for most ventilation grilles

Safety instructions

⚠️ Wireless charging may not work properly if the iPhone is in an unsuitable or thick case.
⚠️ DO NOT use an uncertified power adapter or an unoriginal or damaged USB cable.
⚠️ PROTECT from water and other liquids.
⚠️ DO NOT attach metal tags or other metal objects to the car mount - this may affect charging or cause overheating.
⚠️ ENSURE a firm fit in the vent.Before driving, check that the bracket is properly secured in the ventilation grille and does not slip. An improperly attached bracket can fall off while driving and cause driver distraction.
⚠️ DO NOT expose to high temperatures.DO NOT expose the bracket to direct sunlight for extended periods of time (e.g. behind a windshield) - extreme temperatures can affect the functionality of the magnet and material.
