Magnetická bezdrátová powerbanka S1B1
Download instructions in PDF

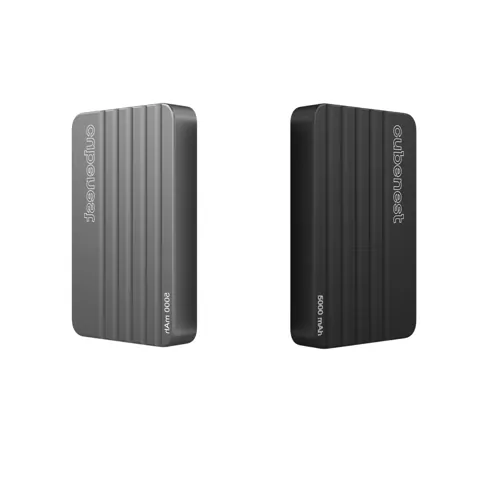

The Cubenest S1B1 is a compact magnetic powerbank with a 5000 mAh capacity, designed for convenient wireless charging of MagSafe and Qi compatible devices. Thanks to strong magnets, it securely attaches to the back of your phone and allows wireless charging up to 10 W. For charging via cable, a USB-C port is available with up to 12 W. The device supports simultaneous charging of two devices - one wirelessly and the other via cable.
The package includes
- 1x Magnetic Wireless Power Bank
- 1× USB-C to USB-C cable (1m)
- User manual
Product Specifications
- Model: S1B1
- Safety protection: over-voltage and over-temperature protection, short-circuit protection
- Variants: grey, black
- Battery capacity: 5000 mAh
- Input: USB-C
- Wireless MagSafe charging: max 10W
- USB-C output: max 12W
- Two devices can be charged (via cable and wirelessly)
- Material: aluminum
- Wireless charging compatibility:
- iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15 Plus, iPhone 15, iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16 Plus, iPhone 16 (and other devices with Qi charging standard support)
Instructions for use
Charging your phone wirelessly
- Press the button on the powerbank to see the current charge level by the number of blue indicators: 1 indicator: 1-25%, 2 indicators: 25-50%, 3 indicators: 50-75%, 4 indicators: 75-100%.
- Connect a MagSafe-enabled phone to the powerbank. The magnets will automatically align and start wireless charging. The LED indicator will glow red while the device is charging.
- To turn off the powerbank, press the button two times.
Charging your phone via USB-C cable
- Connect your phone and or other device to the powerbank using the USB-C cable. Charging will start automatically.
Charging the power bank
- Connect the USB-C cable to the powerbank and the other end to the AC adapter. The LED indicators will indicate the charge level.
! For an ideal and fast charging of the battery of the device being charged, we recommend to disable the optimized charging in the device, which may cause the charging to be disconnected from the powerbank. By having the power bank have an auto shut off function, it would not then automatically reconnect to charge without manually turning on the power bank.
Safety instructions
⚠️ USE only the recommended accessories.
⚠️ DO NOT use an uncertified or damaged USB cable for charging.
⚠️ DO NOT expose the power bank to extreme temperatures or humidity.
⚠️ DO NOT place metal objects on the charging surface.
⚠️ KEEP out of reach of children.
⚠️ CLEAN the charging surface regularly with a dry cloth.
⚠️ DO NOT use the power bank if it is physically damaged.
The power bank is equipped with FOD (Foreign Object Detection). If a metal foreign object is detected on the charging surface, the charging process will be interrupted.
Remove all metal objects from the back of the phone before charging.
Note: Do not place any metal objects or credit cards on the charging surface to avoid damaging the device or demagnetizing it.
Maintenance:
Clean the charger with a soft, dry cloth.
Do not use harsh chemicals or abrasive materials.
The aluminum case of the power bank can release heat during fast charging!
