Cubenest Powercube Rewirable
Download instructions in PDF

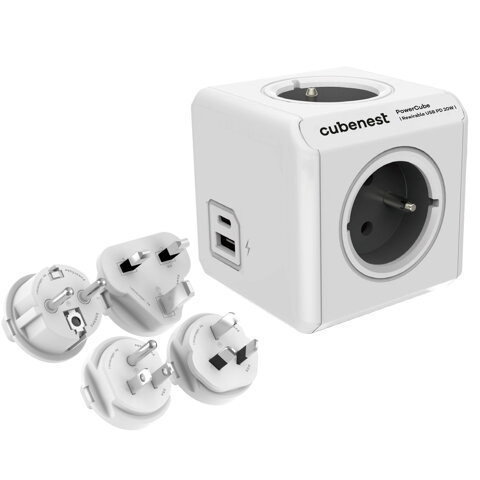

Cubenest PowerCube Rewirable USB A + C PD 20 W is an innovative charging cube that combines 4 AC outlets and two USB ports (USB-A and USB-C) with intelligent PD technology up to 20 W. Thanks to the interchangeable world terminals (EU, US, UK, AU/CN) it can be easily adapted to different types of sockets when travelling or using at home.
Package contents
- 1× Cubenest PowerCube Rewirable USB PD 20W
- 4x Travel plug connectors (EU, US, UK, AU/CN)
- User manual
Product Specifications
- Model: Rewirable
- Output power of sockets: max 16A/250V~3680W/50-60Hz
- USB-C output power: 5V/3A, 9V/2.22A, 12V/1.67A
- USB-A output power: 5V/3A, 9V/2A, 12V/1.5A
- Output power USB-A + USB-C: 5V/3.1A
- Material: ABS
- Childproof fuse
- Number of sockets: 4
- USB ports: 1x USB-A, 1x USB-C
- EU, US, UK, AU/CN
- Supports fast charging technology
- PD 3.0, PD2.0, PPS
- QC4.0+, QC3.0, QC2.0
- DCP, FCP, SCP, AFC
- Apple 2.4, Samsung 2.0
- BC1.2, PE2.0, PE1.1
Instructions for use
- Select the desired travel tip and insert it into the IEC socket.
- To remove the travel tip, press the safety catch and pull the travel tip out.
- Plug the PowerCube into the electrical outlet.
- Plug the device into the Powercube outlet.
- Thanks to the clever design, you can combine sockets and USB ports as you need them.
Safety instructions
⚠️ DO NOT cover the device and protect it from moisture.
⚠️ This device is NOT intended for use in wet environments.
⚠️ DO NOT exceed the maximum power allowed.
⚠️ The recommended operating temperature is up to 25°C, short-term use may be up to 35°C.
⚠️ Interconnecting multiple PowerCube units is not recommended. Although it is technically possible to combine PowerCube Original and PowerCube Extended/Rewirable models, for safety reasons it is always advisable to use only one unit separately. Connecting multiple outlets can overload the mains and exceed the maximum power input of 2500 W, which can lead to overheating or damage to the equipment. Always use the PowerCube separately for safe operation.
